Product title:High Speed SMD Chip Counter YS-IH881

  • Product detail:4. Fast counting speed, such as 5000pcs / 15 seconds.

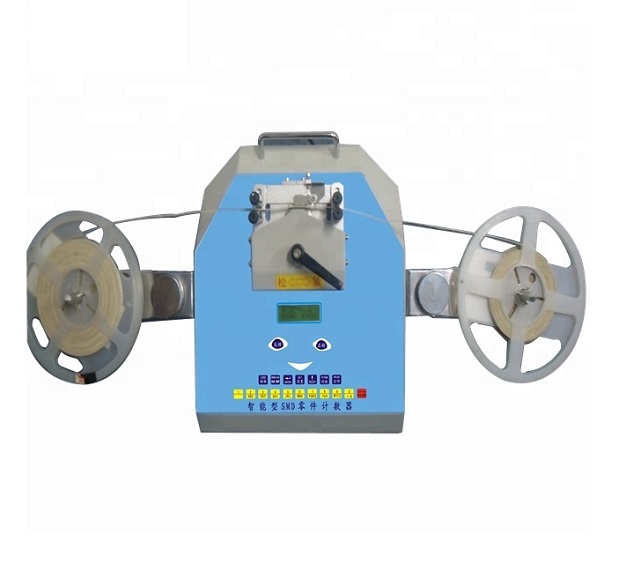

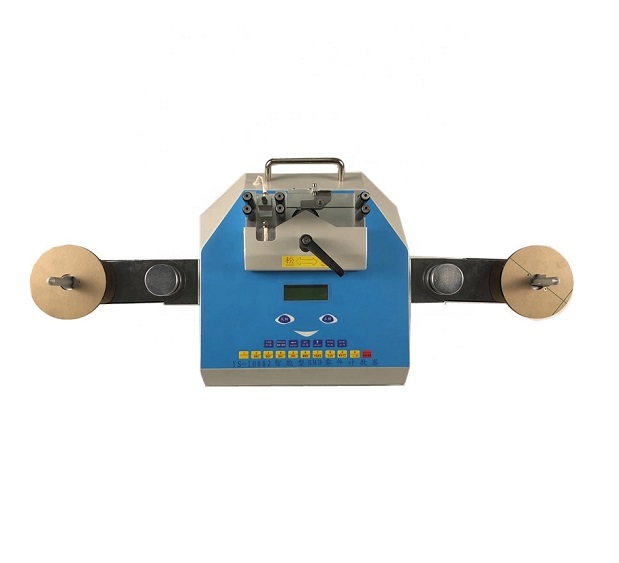

    High Speed SMD Chip Counter YS-IH881


    IH 881.jpg

    FEATURES



    1. Easy operation. Vertical appearance for both standing and sitting operation.



    2. Auto-stop feature. Stop automatically when finishing counting materials. Save labor.



    3. Voice promot and count off.



    4. Fast counting speed, such as 5000pcs / 15 seconds.



    5. Buffer to stop the machine when it is close to the end.



    6. Pre-set counting amount, easily get the correct number of SMD components you need.



    7. Precisely count the number of SMD parts to better control inventory.



    8. Suitable for any size of SMD reels.



    9. Small in size, light in weight, portable.

    Specifications

    1. Power source: AC220V/110V, 50HZ

    2. Count speed: 20000PCS /minutes

    3. Rated power: 30W

    4. Count range: From -16777216 to 1677216 pcs

    5. Machine measurement: L490*W280*H280mm

    6. Weight: 12kg

             7. Applicative tape diameter: all type of SMD tape is ok

        8. Pitch: 2.4.8.10.12.16.32.44.56mm

    9.Applicative tape width: 8,12,16,24,32,44,56mm

    10. Packaging detail: Carton box with foam plastics

    11. Packing weight: 15k

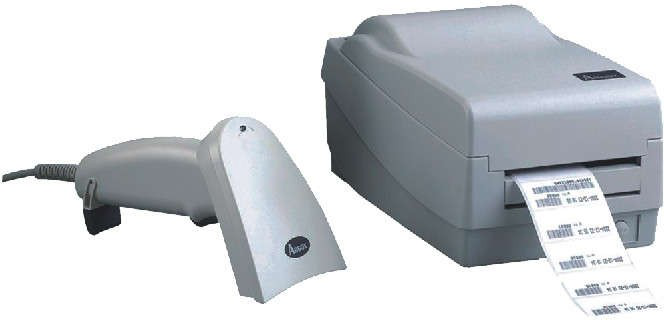

    Optional device: Bar code printer and Scanner

    The printer will be connected with counter, after counting, it can print a bar code with QTY, Date, Part Number, even your company.
