Product title:SMT Plastic ESD PCB Trolley SP-TRO-102-2

  • Product detail:ESD PCB trolley is composed of plastic side plate and stainless steel frame rack, and wheels. We have many size and types of side plate to meet different customers’ request on size. And we could offer different types of wheels to meet different customer on load request Application: Electronics industrial storage & circulation ESD protection

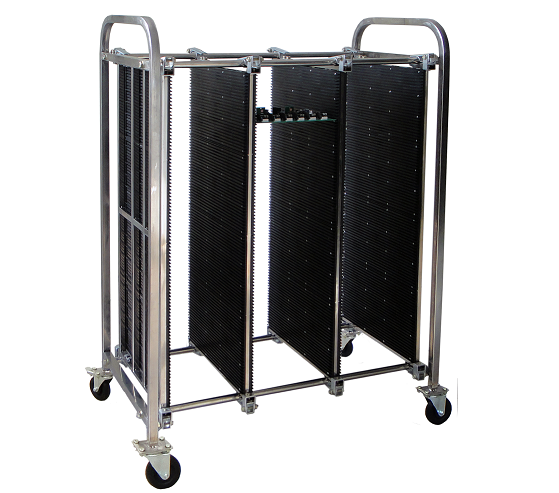

    ESD PCB Plate Trolley SP-TRO102-2



    ESD PCB trolley is composed of plastic side plate and stainless steel frame rack, and wheels.

    We have many size and types of side plate to meet different customers’ request on size.

    And we could offer different types of wheels to meet different customer on load request



    Application:

    Electronics industrial storage & circulation

    ESD protection


    Specification:



    · Side Plate Material: PP compound with conductive fiber

    · Side Plate Type: Injection mold

    · Color: black

    · Trolley frame rack material: stainless steel

    · Trolley frame rack: square type

    · Adjustable method: handle adjustable/screw adjustable

    · Each row can insert 100pcs pcbs, adding more double flashboard, it can insert more PCBs.

     It can store  300pcs as request.

    · Max. Load: 100kg or, if customer have higher request load, we could make higher

      configuration for you.



    Available size we could make:



    MODEL

    Trolley Size

    Plastic small

    panel

    size

    Slot width

    Depth

    Pitch

    Slot No.

    Side plate structure

    SP-TRO102

    960*650*1300mm/

    1200*650*1300mm

    460*248mm

    4.5mm

    4.5mm

    10mm

    100

    4pcs small panel

    SP-TRO102-2

    960*550*1380mm

    1200*550*1380mm

    460*248mm

    4.5mm

    4.5mm

    10mm

    100

    4pcs small panel

    Handle adjustable

    Screw adjustable

    10e6-10e9

    ohms

    Any size can be customized according to customer

    request. Each can put 100pcs PCBs,

    adding double flashboard, it can insert more PCB
