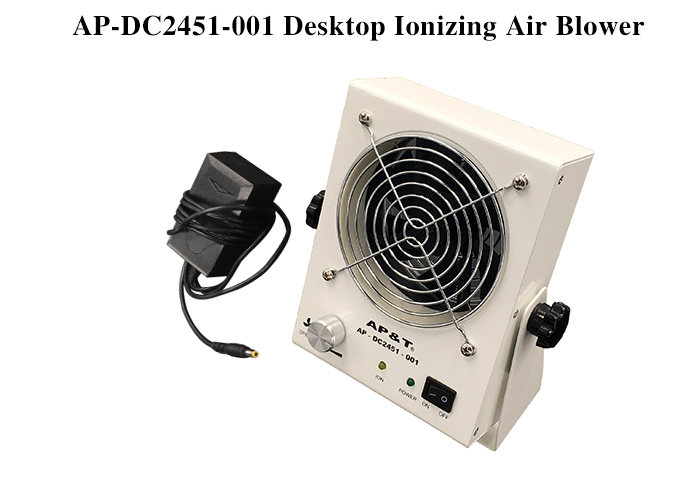

Product title:SP-AP-DC2451-001 Self-cleaning suspended ion fan

  • Product detail:

    SP-DC2451-001 Dust Removal Electrostatic Anti Static Eliminate ESD Air Ionizer Fan




    Product Description

    DC2451-001 Dust Removal Electrostatic Anti Static Eliminate ESD Air Ionizer Fan

    Product Feature

    1,Compact structure and elegant appearance

    2,Large volume of ion generating and fast speed of static removing

    3,Fan stepless speed adjustment

    4,Stable, safe and reliable performance

    5,Detachable cover net both front and back, convenient to maintain

    6,Equipped with special external power adapter

    7,Automatically cleaning pins when turn on,and regular cleaning.

    DC2451-001 Dust Removal Electrostatic Anti Static Eliminate ESD Air Ionizer FanDC2451-001 Dust Removal Electrostatic Anti Static Eliminate ESD Air Ionizer Fan

    Industry Applications

    Wildly used in electronics, optoelectronics, semiconductors, plastics, films and printing industries

    Specification

    Model

    AP-DC 2451-001

    Input voltage

    AC 220V/50Hz or 110v/60Hz (with external power adapter)

    Output voltage

    DC±4KV---±7KV

    Output frequency

    30Hz(Default)

    Discharge speed

    2S  (300mm Testing center from the air outlet)

    Power

    12W

    Discharge range

    1200*600mm

    Air Volume

    0-95 CFM

    Noise

    <45dBA(150mm from air outlet)

    Ozone thickness

    ≤0.02ppm(150mm from air outlet)

    Ion balance

    ≤|±10V|

    Working temperature

    0℃-50℃

    Working humidity

    <70%

    Dimension

    180x72x201.5mm

    Net weight

    1500g

    Gross weight

    1980g(include adaptor, power cable, packing etc)

    DC2451-001 Dust Removal Electrostatic Anti Static Eliminate ESD Air Ionizer FanDC2451-001 Dust Removal Electrostatic Anti Static Eliminate ESD Air Ionizer FanDC2451-001 Dust Removal Electrostatic Anti Static Eliminate ESD Air Ionizer FanDC2451-001 Dust Removal Electrostatic Anti Static Eliminate ESD Air Ionizer FanDC2451-001 Dust Removal Electrostatic Anti Static Eliminate ESD Air Ionizer Fan

    Warranty and After Sales Service

    (1)AP-DC2451-001 ionizing air blowers are strictly inspected before ex-work and match all the related technical standard indicated in this manual.

    (2)AP&T PROMISE:Repair or change any damaged parts caused by quality reasons free of charge within one year from the date of purchase after we confirm the quality issue.

    (3)Above promise is not fit for the following situation:Alternation of the device, wrongly used, incorrect installation, abasement, negligence, accidental damage, wrong input voltage, unpacking and repacking by user itself or maintain by other unauthorized service department.

    (4)AP&T is free from any related responsibility of using the product except the parts specified here above.



     Caution:

         (1)In order to guarantee the blower to work with good technical feature, user should clear the         sediment on electrode sharp slightly with brush pen every 5-7 days under normal operation.

    A. Must be done 10 minutes after power switched off.

    B. Alloy electrode is consumable without warranty,and cost is chargeable when change.

    (2)User should not over turn the air volume adjust knob.Permanent Damage caused by this operation will be beard by the operator.
