Product title:Gear Belt adjustment PCB Magazine Rack SP-1804/ 1804G 535*530*570mm

  • Product detail:Width Adjusment by gear belt , handing different PCB sizes the magazines have to adjusted to PCB width quite often , the PCB magazines of SP-17 series are adjusted to the necessary PCB width within seconds

    Gear Belt adjustment PCB Magazine Rack

    Code: SP-1804

    Precision, stablity and flexible handing are important feature for the use of PCB Magazines Racks in automated assembly lines The stable and robust frame construction guaranteed a long lasting use of the SOUP ESD Magazine rack in your production .


    For automated assembly lines

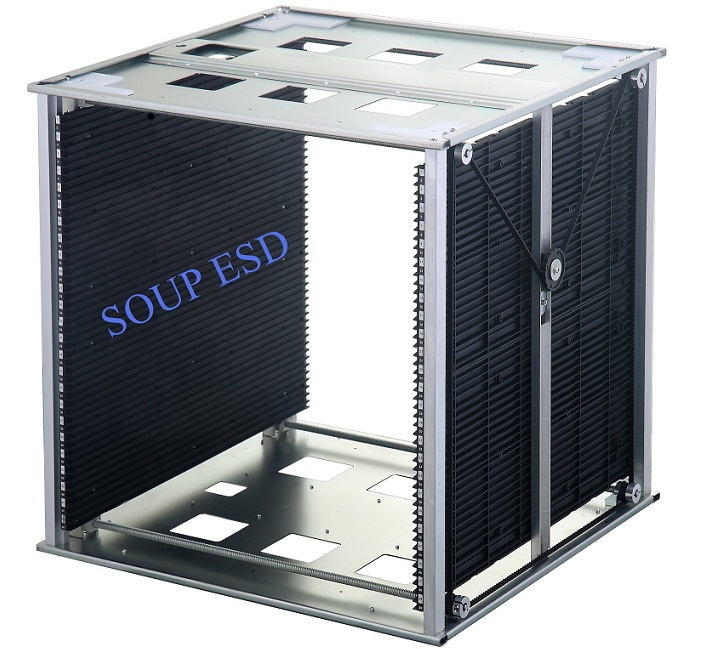

    SP-1804 (1)_副本.jpg





    Magazine rack demension.png


    Specification:

    Width Adjusment by gear belt , handing different PCB sizes the magazines have to adjusted to PCB width quite often , the PCB magazines of SP-18 series are adjusted to the necessary PCB width within seconds


    Application:

    -Store and logistic PCB, Electronic components

    -ESD Protection on SMT, SMD , Semiconductor industrial

    -Accoding to ANSI/ESD S20.20 Standard, ISO9001:2008 quality system .


    Detail:



    Contour Size(L×W×H)mmSlot of side platePCB board use standard
    DepthWidthPitchAdustable WidthPCB Stored


    535*530*570

    3.5mm5mm10mm50-460mm50
    Adjustment MethodSide PlateBase MaterialtWeight
    Gear Belt

     2 plates

    Metal12 kg

    Model SP-1804  Temperature for PCB : 80 degree.C

    Model SP-1804G  Temperature for PCB : 120 degree.C

    Dissipative Type 1.0×10E4Ω~1.0×10E9Ω
