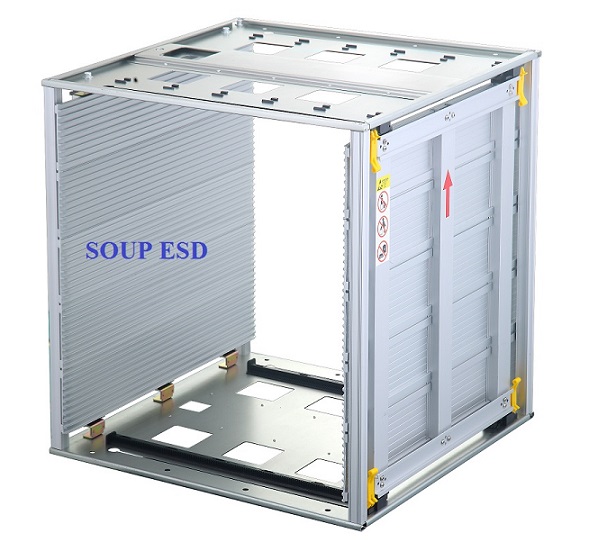

Product title:ESD aluminum PCB Magazine Racks SP-11A 535*530*570mm

  • Product detail:Product detail:Full metal PCB magazine rack, sideboard is made by Aluminium material, high temperature for heated PCB , screw adjust type can be putted into oven and bear 300- 400 degree.C temperature ,compatible for SMT Loader or unloader automatic system

    Large size Aluminum high heat  ESD Antistatic SMT PCB Magazine Rack SP-11 ,  535*530*570mm

    Code: SP-11A

    Precision, stablity and flexible handing are important feature for the use of PCB Magazines in automated assembly lines The stable and robust frame construction guaranteed a long lasting use of the SOUP SMT

    ESD Magazine rack in your production .



    For automated assembly lines


    Magazine rack demension.png


    Specification:

    Material: Aluminiumn , Zinc Coating Steel, Aluminium Alloy


    Application:

    -Store and logistic PCB, Electronic components

    -ESD Protection on SMT, SMD , Semiconductor industrial

    -Accoding to ANSI/ESD S20.20 Standard, ISO9001:2008 quality system .


    Detail:


    Contour Size(L×W×H)mmSlot of side platePCB board use standard
    DepthWidthPitchAdustable WidthPCB Stored
    535×530×5703.0mm5mm10mm(50- 460)mm50
    Adjustment MethodSide PlateBase MaterialtWeight
    Handle or screw Adjustable

    Aluminum Five Pieces Assembled

    Metal 14.5 kg

    SP-09A Temperature:  300-400 degree.C

    Screw adjust type can be putted into oven .



    Dissipative Type 1.0×104Ω~1.0×108Ω
