Product title:Europe SMT ESD PCB Magazine Rack 400*320*563mm SP-04/SP-04G

  • Product detail:Size: 400*320*563mm /Top : metal /Temperature: 80 or 120 degree.C Precision, stablity and flexible handing are important feature for the use of PCB Magazines in automated assembly lines The stable and robust frame construction guaranteed a long lasting use of the SOUP ESD Magazine rack in your production .

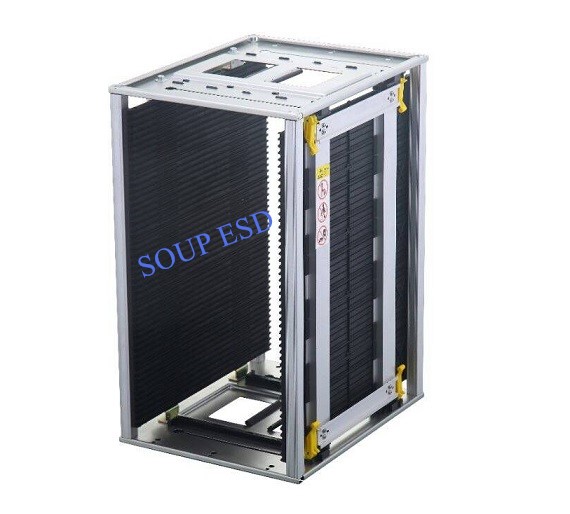

    Europe SMT ESD PCB Magazine Rack 400*320*563mm SP-04/SP-04G

    Code: SP-04/04G

    Precision, stablity and flexible handing are important feature for the use of PCB Magazines in automated assembly lines The stable and robust frame construction guaranteed a long lasting use of the SOUP ESD Magazine rack in your production .


    For Automated assembly lines



    Magazine rack demension.png



    Specification:

    Material: Conductive PP /PPE, Zinc Coating Steel, Aluminium Alloy


    Application:

    -Store and logistic PCB, Electronic components

    -ESD Protection on SMT, SMD , Semiconductor industrial

    -Accoding to ANSI/ESD S20.20 Standard, ISO9001:2008 quality system .


    Detail:

    Contour Size(L×W×H)mmSlot of side platePCB board use standard
    DepthWidthPitchAdustable WidthPCB Stored
    400×320×5633.5mm5mm10mm(50-250)mm50
    Adjustment MethodSide PlateBase MaterialtWeight
    Handle or screw adjust

    Five Pieces Assembled

    Metal5.2kg

    SP-04 Temperature: 80 degree.C

    SP-04G Temperature: 120degree.C

    Surface Resistance
    Dissipative Type 1.0×10E4Ω~1.0×10E9Ω
