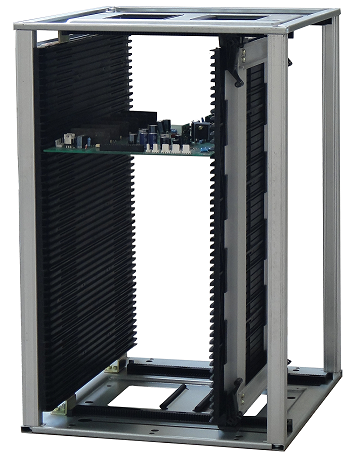

Product title:M size ESD Magazine Rack 355*320*563 SP-03/SP-03G Handle adjust

  • Product detail:1) M size: 355*320*563mm , 2)top & bottom : Metal 3)Temperature: 80 or 120degree.C 4) PCB adjust: 350*(50-250)mm SOUP ESD PCB Magazine Racks are available with various types and sizes to meet customer's needs and all models are compatible with standard SMT equipment.

    M size ESD Magazine Rack 355*320*563 SP-03/SP-03G Handle adjust

    Code: SP-03 /SP-03G

    Precision, stablity and flexible handing are important feature for the use of PCB Magazines in automated assembly lines The stable and robust frame construction guaranteed a long lasting use of the SOUP ESD Magazine rack in your production .


    For automated assembly lines

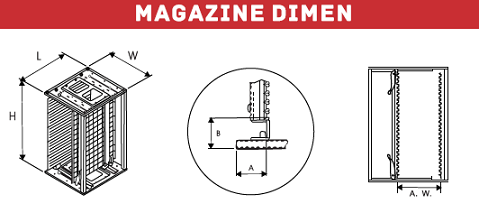

    Magazine rack demension.png


    Specification:

    Material: Conductive PP /PPE, Zinc Coating Steel, Aluminium Alloy


    Application:

    -Store and logistic PCB, Electronic components

    -ESD Protection on SMT, SMD , Semiconductor industrial

    -Accoding to ANSI/ESD S20.20 Standard, ISO9001:2008 quality system .


    Detail:



    Contour Size(L×W×H)mmSlot of side platePCB board use standard
    DepthWidthPitchAdustable WidthPCB Stored
    355×320×5633mm5mm10mm(50-250)mm50
    Adjustment MethodSide PlateBase MaterialtWeight
    Handle Adjustable

    Five Pieces Assembled

    Metal5.5kg

    SP-03  Temperature 80℃ is only  fittable to PC board

    SP-03G Temperature120 is only  fittable to PC board

    Surface Resistance
    Dissipative Type 1.0×10E4Ω~1.0×10E8Ω
