Part 3: Basic ESD Control Procedures and Materials

time:2016-12-07 00:29:47

In Part Two, Principles of ESD Control – ESD Control Program Development, we introduced six principles of static control and six key elements of ESD program development and implementation. In Part Three, we will cover basic static control procedures and materials that will become part of your ESD control program. First, we review the principles. Basic Principles of Static Control We suggested focusing on just six basic principles in the development and implementation of effective ESD control programs:

  1. Design in protection by designing products and assemblies to be as robust as reasonable from the effects of ESD.

  2. Define the level of control needed in your environment.

  3. Identify and define the electrostatic protected areas (EPAs), the areas in which you will be handling ESD sensitive parts (ESDS).

  4. Reduce Electrostatic charge generation by reducing and eliminating static generating processes, keeping processes and materials at the same electrostatic potential, and by providing appropriate ground paths to reduce charge generation and accumulation.

  5. Dissipate and neutralize by grounding, ionization, and the use of conductive and dissipative static control materials.

  6. Protect products from ESD with proper grounding or shunting and the use of static control packaging and material handling products.

At the facility level our ESD control efforts concentrate on the last five principles. Here in Part Three, we will concentrate on the primary materials and procedures that reduce electrostatic charge generation, remove charges to ground, and neutralize charges to protect sensitive products from ESD.

Identifying the Problem Areas and the Level of Control One of the first questions we need to answer is “How ESD sensitive are the parts and assemblies we are manufacturing or handling?” This information will guide you in determining the various procedures and materials required to control ESD in your environment. How do you determine the sensitivity of your parts and assemblies or where can you get information about their ESD classification or withstand voltage?

A first source would be the manufacturer or supplier of the component itself or the part data sheet. It is critical that you obtain both Human Body Model (HBM) and Charged Device Model (CDM) ratings. You may find that you need to have your specific device tested for ESD sensitivity.  However, be aware that the correlation between voltages used for device qualification and static voltages measured in the field is weak.

The second question you need to answer is “Which areas of our facility need ESD protection?” This will allow you to define your specific electrostatic protected areas (EPAs), the areas in which you will be handling sensitive parts and the areas in which you will need to implement the ESD control principles. Often you will find that there are more areas that require protection than you originally thought, usually wherever ESDS devices are handled. Typical areas requiring ESD protection are shown in Table 1.

Table 1
Typical Facility Areas Requiring ESD Protection

Stores and warehouses
Test and inspection
Research and development
Field service repair
Offices and laboratories


fundamentalsP3 clip image002

Figure 1: Common Point Ground Symbol

Grounding is especially important for effective ESD control It should be clearly defined, and regularly evaluated.

The equipment grounding conductor provides a path to bring ESD protective materials and personnel to the same electrical potential. All conductors and dissipative materials in the environment, including personnel, must be bonded or electrically connected and attached to a known ground, or create an equipotential balance between all items and personnel. ESD protection can be maintained at a charge or potential above a "zero" voltage ground reference as long as all items in the system are at the same potential. It is important to note that insulators, by definition non-conductors, cannot lose their electrostatic charge by attachment to ground.

ESD Association Standard ANSI/ESD S6.1-Grounding recommends a two-step procedure for grounding EPA ESD control items. The first step is to ground all components of the workstation and the personnel (worksurfaces, equipment, etc.) to the same electrical ground point, called the "common point ground." This common point ground is defined as a "system or method for connecting two or more grounding conductors to the same electrical potential."

This ESD common point ground should be properly identified. ESD Association standard ANSI/ESD S8.1 – Symbols, recommends the use of the symbol in Figure 1 to identify the common point ground.

The second step is to connect the common point ground to the equipment grounding conductor (AC ground) or the third wire (typically green) electrical ground connection. This is the preferred ground connection because all electrical equipment at the workstation is already connected to this ground. Connecting the ESD control materials or equipment to the equipment ground brings all components of the workstation to the same electrical potential.

If a soldering iron used to repair an ESDS item were connected to the electrical ground and the surface containing the ESDS item were connected to an auxiliary ground, a difference in electrical potential could exist between the iron and the ESDS item. This difference in potential could cause damage to the item. Any auxiliary ground (water pipe, building frame, ground stake) present and used at the workstation must be bonded to the equipment grounding conductor to minimize differences in potential between the two grounds.

Detailed information on ESD grounding can be found in ESD Association standard ANSI/ESD S6.1, Grounding, and the ESD Handbook ESD TR20.20, and/or CLC/TR 61340-5-2 User guide.

Controlling Static on Personnel and Moving Equipment

People can be one of the prime generators of static electricity. The simple act of walking around or the motions required in repairing a circuit board can generate several thousand volts of electrostatic charge on the human body. If not properly controlled, this static charge can easily discharge into an ESD sensitive device¬ – a typical Human Body Model discharge. Also, a person can transfer charge to a circuit board or other item making it vulnerable to Charged Device Model events in a subsequent process.

Even in highly automated assembly and test processes, people still handle ESDS … in the warehouse, in repair, in the lab, in transport. For this reason, ESD control programs place considerable emphasis on controlling personnel generated electrostatic discharge. Similarly, the movement of mobile equipment (such as carts or trolleys) and other wheeled equipment through the facility also can generate substantial static charges that can transfer to the products being transported on this equipment.

Wrist Straps

Typically, wrist straps are the primary means of grounding personnel. When properly worn and connected to ground, a wrist strap keeps the person wearing it near ground potential. Because the person and other grounded objects in the work area are at or near the same potential, there can be no hazardous discharge between them. In addition, static charges are removed from the person to ground and do not accumulate. When personnel are seated on a chair which is not EPA appropriate, they are to be grounded using a wrist strap.

Wrist straps have two major components, the wristband that goes around the person's wrist and the ground cord that connects the wristband to the common point ground. Most wrist straps have a current limiting resistor molded into the ground cord on the end that connects to the wristband. This resistor is most commonly one megohm, rated at least 1/4 watt with a working voltage rating of 250 volts.

Wrist straps have several failure mechanisms and therefore should be tested on a regular basis. Either daily testing at specific test stations or using a continuous monitor at the workbench is recommended.

Floors, Floor Mats, Floor Finishes

A second method of grounding personnel is a Flooring/Footwear System using ESD flooring in conjunction with ESD control footwear or foot grounders. This combination of conductive or dissipative floor materials and footwear provides a safe ground path for the dissipation of electrostatic charge, thus reducing the charge accumulation on personnel. In addition to dissipating charge, some floor materials (and floor finishes) also reduce triboelectric charging. The use of a Flooring/Footwear System is especially appropriate in those areas where increased personnel mobility is necessary. In addition, floor materials can minimize charge accumulation on chairs, mobile equipment (such as carts and trolleys), lift trucks and other objects that move across the floor. However, those items require dissipative or conductive casters or wheels to make electrical contact with the floor, and components to be electrically connected. When used as the personnel grounding system, the resistance to ground including the person, footwear and floor must be the same as specified for wrist straps (<35 megohms) and the accumulation body voltage in a standard walking voltage test (ANSI/ESD STM97.2) must be less than 100 volts.

Shoes, Grounders, Casters

Used in combination with ESD flooring, static control shoes, foot grounders, casters and wheels provide the necessary electrical contact between the person or object and the flooring. Insulative footwear, casters, or wheels prevent static charges from flowing from the body or mobile equipment to the floor to ground and, therefore, have to be avoided.


Clothing is a consideration in some ESD protective areas, especially in cleanrooms and very dry environments. Clothing materials, particularly those made of synthetic fabrics, can generate electrostatic charges that may discharge into ESDS or they may create electrostatic fields that may induce charges. Because clothing usually is electrically insulated or isolated from the body, charges on clothing fabrics are not necessarily dissipated to the skin and then to ground. Static control garments may suppress or otherwise affect an electric field from clothing worn underneath the garment. Per ANSI/ESD S20.20 and the Garment standard ANSI/ESD STM2.1, there are three categories of ESD garment:

  • ESD Category 1 garment; a static control garment without being attached to ground. However, without grounding, a charge may accumulate on conductive or dissipative elements of a garment, if present, resulting in a charged source.

  • ESD Category 2 garment; a groundable static control garment, when connected to ground, provides a higher level of suppression of the affects of an electric field from clothing worn underneath the garment.

  • ESD Category 3 garment; a groundable static control garment system also bonds the skin of the person to an identified ground path. The total system resistance including the person, garment and grounding cord shall be less than 35 megohms.

Workstations and Worksurfaces

fundamentalsP3 clip image004

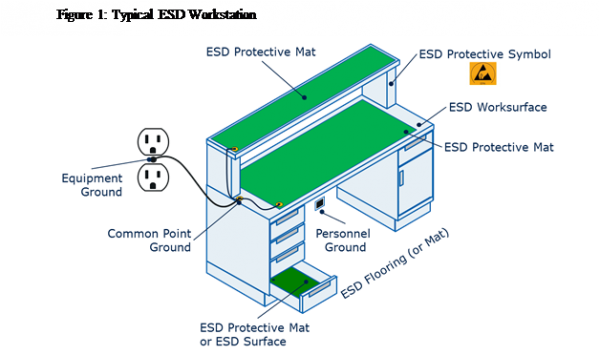

Figure 2: Typical ESD Workstation

An ESD protective workstation refers to the work area of a single individual that is constructed and equipped with materials and equipment to limit damage to ESD sensitive items. It may be a stand-alone station in a stockroom, warehouse, or assembly area, or in a field location such as a computer bay in commercial aircraft. A workstation also may be located in a controlled area such as a cleanroom. The key ESD control elements comprising most workstations are a static dissipative worksurface, a means of grounding personnel (usually a wrist strap), a common point ground, and appropriate signage and labeling. A typical workstation is shown in Figure 1.

The workstation provides a means for connecting all worksurfaces, fixtures, handling equipment, and grounding devices to a common point ground. In addition, there may be provision for connecting additional personnel grounding devices, equipment, and accessories such as constant or continuous monitors and ionizers.

Static protective worksurfaces with a resistance to ground of 1 megohm to 1 gigohm provide a surface that is at the same electrical potential as other ESD control items at the workstation. They also provide an electrical path to ground for the controlled dissipation of any static charges on materials that contact the surface. The worksurface also helps define a specific work area in which ESDS are to be handled. The worksurface is connected to the common point ground.

fundamentalsP3 clip image002

Continuous or Constant Monitors

Continuous (or constant) monitors are designed to provide ongoing testing of the wrist strap system. While a number of technologies are utilized, the goal remains consistent: electrical connections are tested between the ground point, ground cord, wristband and person's body while the wearer handles ESDS. Continuous monitors may also provide a monitoring circuit for the ESD worksurface or other equipment connection to the ground reference.

Typical test programs recommend that wrist straps that are used daily should be tested daily. However, if the products that are being produced are of such value that knowledge of a continuous, reliable ground is needed, and then continuous monitoring should be considered or even required. Daily wrist strap testing may be omitted if continuous monitoring is used.

Production Equipment and Production Aids

Although personnel can be the prime generator of electrostatic charge, automated manufacturing and test equipment also can pose an ESD problem. For example, an ESDS device may become charged from sliding down a component part feeder. If the device then contacts the insertion head or another conductive surface, a rapid discharge occurs from the device to the metal object — a Charged Device Model (CDM) event. If charging of the ESDS cannot be avoided – which is quite often the case in modern assembly lines due to the insulative IC packages – charge storage should be reduced by the use of ionizers. In addition, various production aids such as hand tools, tapes, or solvents can also be ESD concerns.

Grounding is the primary means of controlling static charge on equipment and many production aids. Much electrical equipment is required by the National Electrical Code to be connected to the equipment ground (the green wire) in order to carry fault currents. This ground connection also will function for ESD control purposes. All electrical tools and equipment used to process ESD sensitive hardware require the 3 prong grounded type AC plug. Hand tools that are not electrically powered, i.e., pliers, wire cutters, and tweezers, are usually grounded through the ESD worksurface and the grounded person using the conductive/dissipative tools. Holding fixtures should be made of conductive or static dissipative materials when possible. Static dissipative materials are often suggested when very sensitive devices are being handled. A separate ground wire may be required for conductive or dissipative fixtures not in contact with an ESD worksurface or handled by a grounded person. For those items that are composed of insulative materials, the use of ionization or application of topical antistats may be required to control electrostatic charge generation and accumulation of static charges.

Gloves and Finger Cots

Certainly, grounded personnel handling ESDS should not be wearing gloves or finger cots made from insulative material. If gloves or finger cots are used, the material should be dissipative or conductive.

Compliance Verification ESD TR53 provides test procedures for measuring the electrical resistance of gloves or finger cots together with personnel in a system.

Packaging and Handling

Inside the EPA packaging and material handing containers are to be low charging and be dissipative or conductive. Outside the EPA packaging and material handing containers are to also have a structure that provides electrostatic discharge shielding.

Direct protection of ESDS devices from electrostatic discharge is provided by packaging materials such as shielding bags, corrugated boxes, and rigid or semi-rigid plastic packages. The primary use of these items is to protect the product when it leaves the facility, usually when shipped to a customer. In addition, materials handling products such as tote boxes and other containers primarily provide protection during inter- or intra-facility transport.

The main ESD function of these packaging and materials handling products is to limit the possible impact of ESD from triboelectric charge generation, direct discharge, and in some cases electrostatic fields. The initial consideration is to have low charging materials in contact with ESD sensitive items. For example, the low charging property would control triboelectric charge resulting from sliding a board or component into the package or container. A second requirement is that the material can be grounded so that the resistance range must be conductive or dissipative. A third property required outside the EPA is to provide protection from direct electrostatic discharges that is discharge shielding.

Many materials are available that provide all three properties: low charging, resistance, and discharge shielding. The inside of these packaging materials have a low charging layer, but also have an outer layer with a surface resistance conductive or dissipative range. Per the Packaging standard ANSI/ESD S541, a low-charging, conductive or dissipative package is required for packaging or material handling within an EPA. Outside the EPA, the packaging must also have the discharge shielding property. Effectiveness, cost and device vulnerability to the various mechanisms need to be balanced in making packaging decisions (see ANSI/ESD S541, the ESD Handbook ESD TR20.20, and/or CLC/TR 61340-5-2 User guide for more detailed information).

Resistance or resistivity measurements help define the material’s ability to provide electrostatic shielding or charge dissipation. Electrostatic shielding attenuates electrostatic fields on the surface of a package in order to prevent a difference in electrical potential from existing inside the package. Discharge shielding is provided by materials that have a surface resistance equal to or less than 1 kilohm when tested according to ANSI/ESD STM11.11 or a volume resistivity of equal to or less than 1 × 10­ ohm-cm when tested according to the methods of ANSI/ESD STM11.12. In addition, effective shielding may be provided by packaging materials that provide a sufficiently large air gap between the package and the ESDS contents. Dissipative materials provide charge dissipation characteristics. These materials have a surface resistance greater than 10 kilohms but less than 100 gigohms when tested according to ANSI/ESD STM11.11 or a volume resistivity greater than 1.0 × 105 ohm-cm but less than or equal to 1.0 × 1012 ohm-cm when tested according to the methods of ANSI/ESD STM11.12. The ability of some packages to provide discharge shielding may be evaluated using ANSI/ESD STM11.31 which measures the energy transferred to the package interior. A material’s low charging properties are not necessarily predicted by its resistance or resistivity.


Most static control programs also deal with isolated conductors that are not grounded, or insulating materials (e.g., most common plastics) that cannot be grounded. Topical antistats may provide temporary ability to dissipate static charges under some circumstances.

More frequently, however, air ionization is used to neutralize the static charge on insulated and isolated objects by producing a balanced source of positively and negatively charged ions. Whatever static charge is present on objects in the work environment will be reduced, neutralized by attracting opposite polarity charges from the air. Because it uses only the air that is already present in the work environment, air ionization may be employed even in cleanrooms where chemical sprays and some static dissipative materials are not usable.

Air ionization is one component of a complete ESD control program, and not a substitute for grounding or other methods. Ionizers are used when it is not possible to properly ground everything and as backup to other static control methods. In cleanrooms, air ionization may be one of the few methods of static control available.

See Ionization standard ANSI/ESD STM3.1, ANSI/ESD SP3.3, and ESD TR53 for testing offset voltage (balance) and discharge times of ionizers.


While the basic methods of static control discussed here are applicable in most environments, cleanroom manufacturing processes require special considerations.

Many objects integral to the semiconductor manufacturing process (quartz, glass, plastic, and ceramic) are inherently charge generating. Because these materials are insulators, this charge cannot be removed by grounding. Many static control materials contain carbon particles or surfactant additives that sometimes restrict their use in cleanrooms. The need for personnel mobility and the use of cleanroom garments often make the use of wrist straps difficult. In these circumstances, ionization and flooring/footwear grounding systems become key weapons against static charge.


fundamentalsP3 clip image006

Figure 3: ESD Susceptibility Symbol

A final element in our ESD control program is the use of appropriate symbols to identify ESD sensitive items, as well as specialty products intended to control ESD. The two most widely accepted symbols for identifying ESDS parts or ESD control protective materials are defined in ESD Association Standard ANSI/ESD S8.1 — ESD Awareness Symbols.


The ESD Susceptibility Symbol (Figure 3) consists of a triangle, a reaching hand, and a slash through the reaching hand. The triangle means "caution" and the slash through the reaching hand means "Don't touch." Because of its broad usage, the hand in the triangle has become associated with ESD and the symbol literally translates to "ESD sensitive stuff, don't touch."

The ESD Susceptibility Symbol is applied directly to integrated circuits, boards, and assemblies that are ESD sensitive. It indicates that handling or use of this item may result in damage from ESD if proper precautions are not taken. Operators should be grounded prior to handling. If desired, the sensitivity level of the item may be added to the label.


fundamentalsP3 clip image008

Figure 4: ESD Protective Symbol

The ESD Protective Symbol (Figure 4) consists of the reaching hand in the triangle. An arc around the triangle replaces the slash. This "umbrella" means protection. The symbol indicates ESD protective material. It is applied to mats, chairs, wrist straps, garments, packaging, and other items that provide ESD protection. It also may be used on equipment such as hand tools, conveyor belts, or automated handlers that is especially designed or modified to provide ESD control properties (low charging, conductive/dissipative resistance, and/or discharge shielding).


Effective ESD control programs require a variety of procedures and materials. The ESD coordinator should release and control regularly a list of the specific EPA ESD control products permitted to be used in the program. We have provided a brief overview of the most commonly used products. Additional in-depth discussion of individual materials and procedures can be found in publications such as the ESD Handbook (ESD TR20.20) published by the ESD Association or the CLC/TR 61340-5-2 User guide.

Your program is up and running. How do you determine whether it is effective? How do you make sure your employees follow it? In Part Four, we will cover the topics of Auditing and Training.
