ESD Antistatic Rubber Table Mat

time:2018-03-14 23:04:43

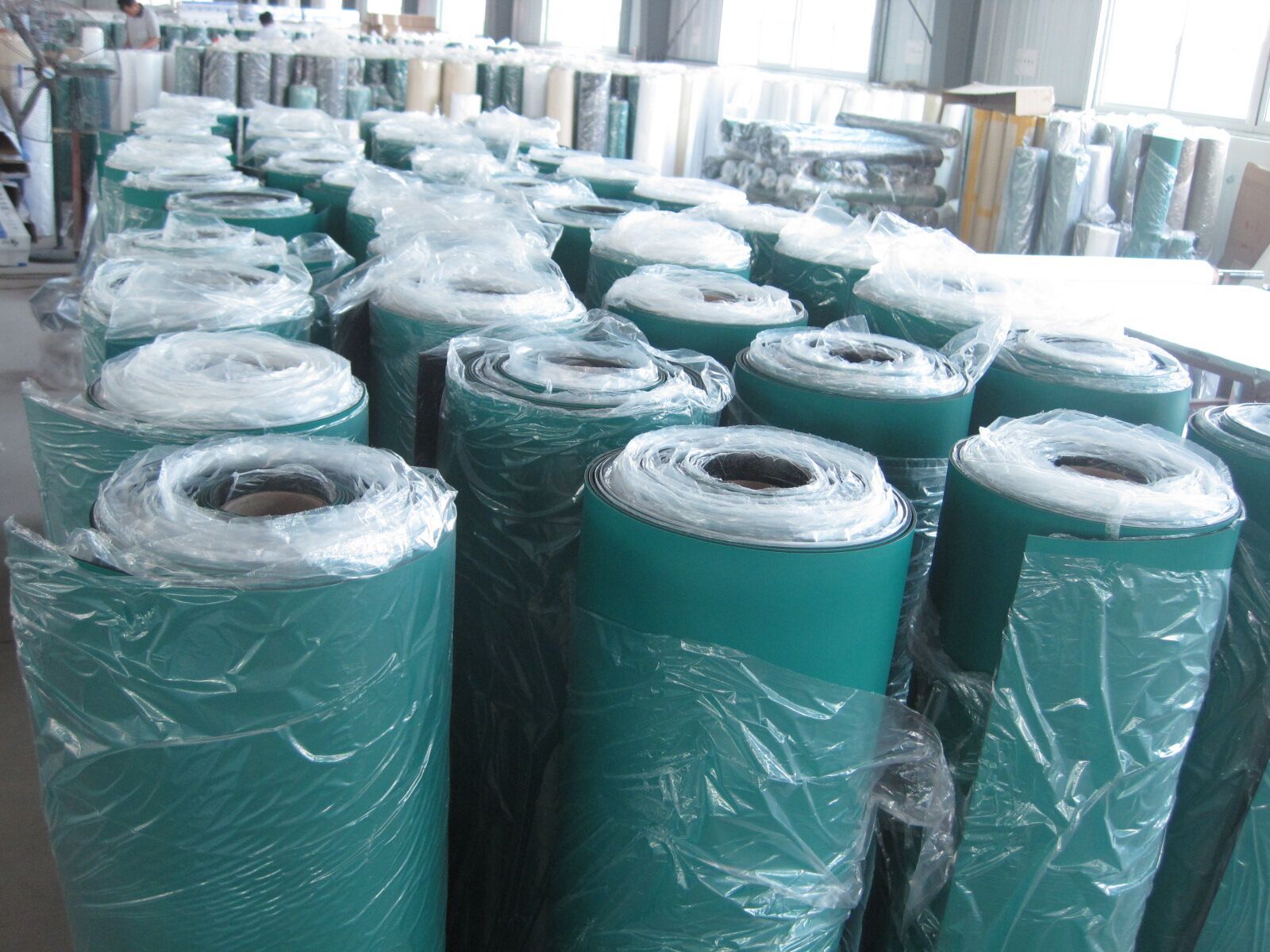

Anti-static mat Anti-static mat



Product model number: 10m*0.6m*2mm, 10m*0.9m*2mm, 10m*1.0m*2mm, 10m*1.2m*2mm

a brief introdction:

Anti-static table mats (ground mats) are mainly made of conductive materials, static dissipative materials, and synthetic rubbers through a variety of processes. The product is generally a two-layer structure. The surface layer is an electrostatic dissipative layer and the bottom layer is a conductive layer. The mat has a long-lasting use time, has good acid-proof, alkali-proof and anti-chemical flux properties, and is wear-resistant and easy to clean. ·Surface layer: Resistor 107-9Ω, color is green, gray or blue, can be divided into matt or bright light. · Bottom layer: resistance 103-5Ω, color is black · Electrostatic erasing time: < 0.5s · Specification: 10* 0.6m, 10*0.9m, 10*1.0m, 10*1.2m

Detailed introduction:

Laying ESD Mat (Ground Mat) Main Purpose: To make the ESDS tweezers, tools, instruments and meters that the human body and the table contact meet to reach a uniform potential and release static electricity, and at the same time to make the electrostatic sensitive device (SSD) free from friction and electrification, etc. The discharge phenomenon interferes, so as to achieve the effect of electrostatic protection.

Anti-static mats are mainly made of static conductive materials, static dissipative materials, and synthetic rubbers through a variety of processes. The surface layer is an about 0.3-0.5 mm thick static dissipative layer and the bottom layer is a conductive layer about 1.5-1.7 mm thick. The mat has a long-lasting use time, has good acid, alkali, and chemical flux resistance characteristics, and is wear-resistant and easy to clean. The length is generally 10m, and the width is 0.6m, 0.9m, 1.0m, 1.2m. The surface color is: green, gray, blue, black and so on. Can be divided into matt or light special circumstances can be processed according to customer requirements.

● Surface resistivity: 107-109Ω

● Underlayer resistivity: 103-105Ω

● Wear rate: <0.02g/cm2

● Static Dissipation Time: <0.5s
